Challenges in Meshing Scroll Compressors

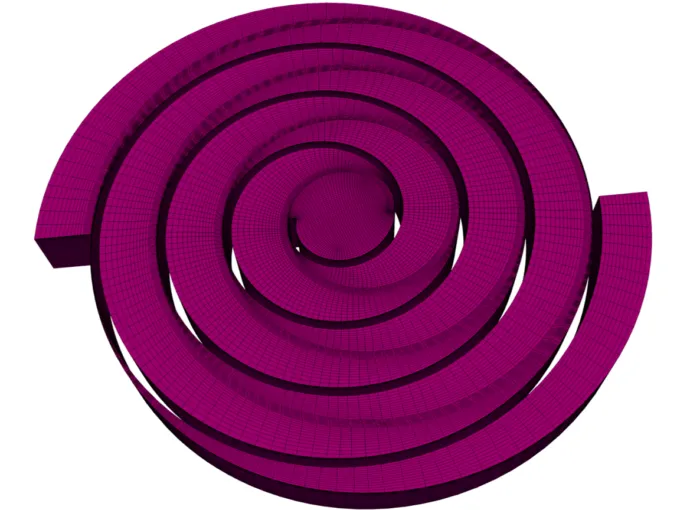

Figure 1: Structured multi-block mesh for scroll compressors with tip seal.

804 words / 4 minutes read

Scroll compressors with deforming fluid space, narrow flank, and axial clearance pose immense meshing challenges to any mesh generation technique.

Introduction

Scroll compressors and expanders have been in extensive usage in refrigeration, air-conditioning, and automobile industries since the 1980s. A slight improvement in scroll efficiency results in significant energy savings and reduction in pollution on the environment. It is therefore important to minimize frictional power loss at each pair of the compressor elements and also the fluid leakage power loss at each clearance between the compressor elements. So developing ways to minimize leakage losses is essential to improve scroll performance.

Scroll Compressor CFD Challenges

Unlike other turbomachines like compressors and turbines, Positive Displacement (PD) machines like scroll suffer from innovative designs and performance enhancements. This is mainly due to difficulties in applying CFD to these machines because of the challenges in meshing , fluid real equations and long computational time.

Scroll compressor Working

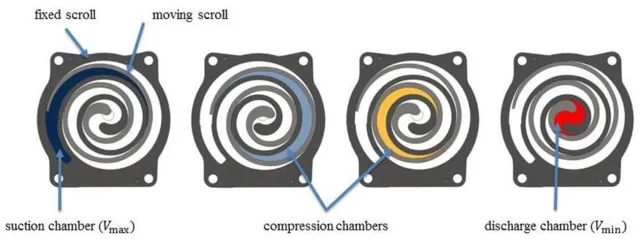

Figure 3: Deforming fluid pockets at different stages in the compression process. Image source Ref [11].

Geometric Challenges for meshing

Deforming Flow Field:

The fluid flow is transient and the flow volume changes with time (Figure 3). The fluid is compressed and expanded as it passes through different stages of the compression process. The mesh for the fluid space should be able to ‘follow’ the deformation imposed by the machine without losing its quality.

When the deformation is small, the initial mesh maintains cell quality, however, for large deformations, mesh quality deteriorates and collapses near the contact points between the stator and moving parts.

Scroll compressors - leakage through flank clearance.
Figure 4: Leakage through flank clearance. Image source – Ref [10].

Flank Clearance:

The narrow passage between the stationary and moving scroll in the radial direction is called the Flank clearance. A clearance of [~ 0.05 mm] is generally used to avoid contact, rub and tear.

Adequately resolving this clearance with a fine mesh is one of the key factors in obtaining an accurate CFD simulation. However, the narrowness of this gap poses meshing challenges for many grid generators.

scroll compressor - leakage through axial clearance.
Figure 5: Leakage through axial clearance. Image source – Ref [10].

Axial Clearance:

The narrow passage between the stationary and moving scroll in the axial direction is called the Axial clearance. The axial clearance is about one thousand of the axial scroll plate height, which is much smaller than the flank clearance.

The gap actually forces to have separate zones of mesh in some cases. Adequate resolution of axial clearance gaps is also equally important since it leads to inaccurate flow field prediction.

Scroll compressor tip seal.
Figure 6: Tip seal used to reduce axial clearance leakage. Image source Ref [5, 8].

Tip Seal Modeling:

Tip seals are used to reduce axial leakages which are caused due to wear and tear. The tip seals influence the mass flow rate of the fluid. Modeling internal leakages with tip seals would require many numerical techniques ranging from fluid-structure interaction to special treatments for thermal deformation and tip seals efficiency.

GridPro's structured mesh for capturing axial gap and tip seal in scroll compressor.

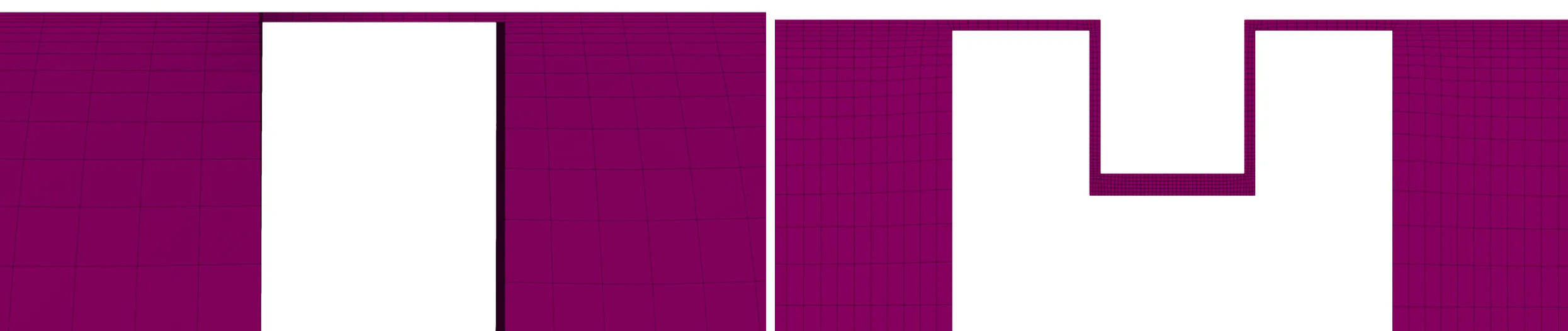

Figure 7: GridPro’s structured mesh for capturing axial gap and tip seal: a. With axial gap. b. Axial gap with tip seal.

Discharge Check Valve Modeling:

Valves called reed valves are installed at the discharge to prevent reverse flow. Understanding the dynamics of the check valves is important because they significantly influence scroll efficiency and noise levels. The losses at the discharge can significantly reduce the overall efficiency.

However, modeling the valve with appropriate simplification is a challenge for any meshing technique.

Reed valve and flip valve's in scroll compressors.
Figure 8: a. Reed valve geometry. b. Flip valve geometry. Image source Ref [2].

Influence of Mesh Element Type

A lot of different meshing methods have been employed from tetrahedral to hexahedral to polyhedral cells to discretize the fluid passage. However, researchers who tend to weigh more on the accuracy of the solution tend to weigh more to mesh with structured hexahedral cells.

Hexahedral meshing outweighs other element types w.r.t grid quality, domain space discretization efficiency, solution accuracy, solver robustness, and convergence levels.

One of the reasons why structured hexahedral mesh offers better accuracy is that it can be squeezed without deteriorating the cell quality. This allows to place, a large number of mesh layers in the narrow clearance gap. Better resolution of the critical gap results in better CFD prediction.

Parting Remarks

Understanding the key meshing challenges before setting forth to mesh scrolls is very essential. Becoming aware of the regions that pose difficulties to mesh and regions that strongly influence the accuracy of the CFD prediction is critically important. More importantly, which meshing approach to pick – structured, unstructured, or cartesian also influence the quality and accuracy of your CFD prediction.

In the next article on Automating meshing for scroll compressors, we discuss, how we can mesh scroll compressors in GridPro.

References

1.“Study on the Scroll Compressors Used in the Air and Hydrogen Cycles of FCVs by CFD Modeling”, Qingqing ZHANG et al, 24th International Compressor Engineering Conference at Purdue, July 9-12, 2018.
2. “Numerical Simulation of Unsteady Flow in a Scroll Compressor”, Haiyang Gao et al, 22nd International Compressor Engineering Conference at Purdue, July 14-17, 2014.
3. “Novel structured dynamic mesh generation for CFD analysis of scroll compressors”, Jun Wang et al, Proc IMechE Part A: J Power and Energy 2015, Vol. 229(8), IMechE 2015.
4. “Modeling A Scroll Compressor Using A Cartesian Cut-Cell Based CFD Methodology With Automatic Adaptive Meshing”, Ha-Duong Pham et al, 24th International Compressor Engineering Conference at Purdue, July 9-12, 2018.
5. “3D Transient CFD Simulation of Scroll Compressors with the Tip Seal”, Haiyang Gao et al, IOP Conf. Series: Materials Science and Engineering 90 (2015) 012034.
6.“CFD simulation of a dry scroll vacuum pump with clearances, solid heating and thermal deformation”, A Spille-Kohoff et al, IOP Conf. Series: Materials Science and Engineering 232 (2017).
7.  “Structured Mesh Generation and Numerical Analysis of a Scroll Expander in an Open-Source Environment”, Ettore Fadiga et al, Energies 2020, 13, 666.
8. “Analysis of the Inner Fluid-Dynamics of Scroll Compressors and Comparison between CFD Numerical and Modelling Approaches”, Giovanna Cavazzini et al, Energies 2021, 14, 1158.
9. “FLOW MODELING OF SCROLL COMPRESSORS AND EXPANDERS”, by George Karagiorgis, PhD- Thesis, The City University, August 1998.
10. “Heat Transfer and Leakage Analysis for R410A Refrigeration Scroll Compressor“, Bin Peng et al, ICMD 2017: Advances in Mechanical Design pp 1453-1469.
11. “Implementation of scroll compressors into the Cordier diagram“, C Thomas et al, IOP Conf. Series: Materials Science and Engineering 604 (2019) 012079.
